ABB Terra AC Wallbox Configuration Guide

1. Initial charger connection over Bluetooth

Open and log in to the TerraConfig application

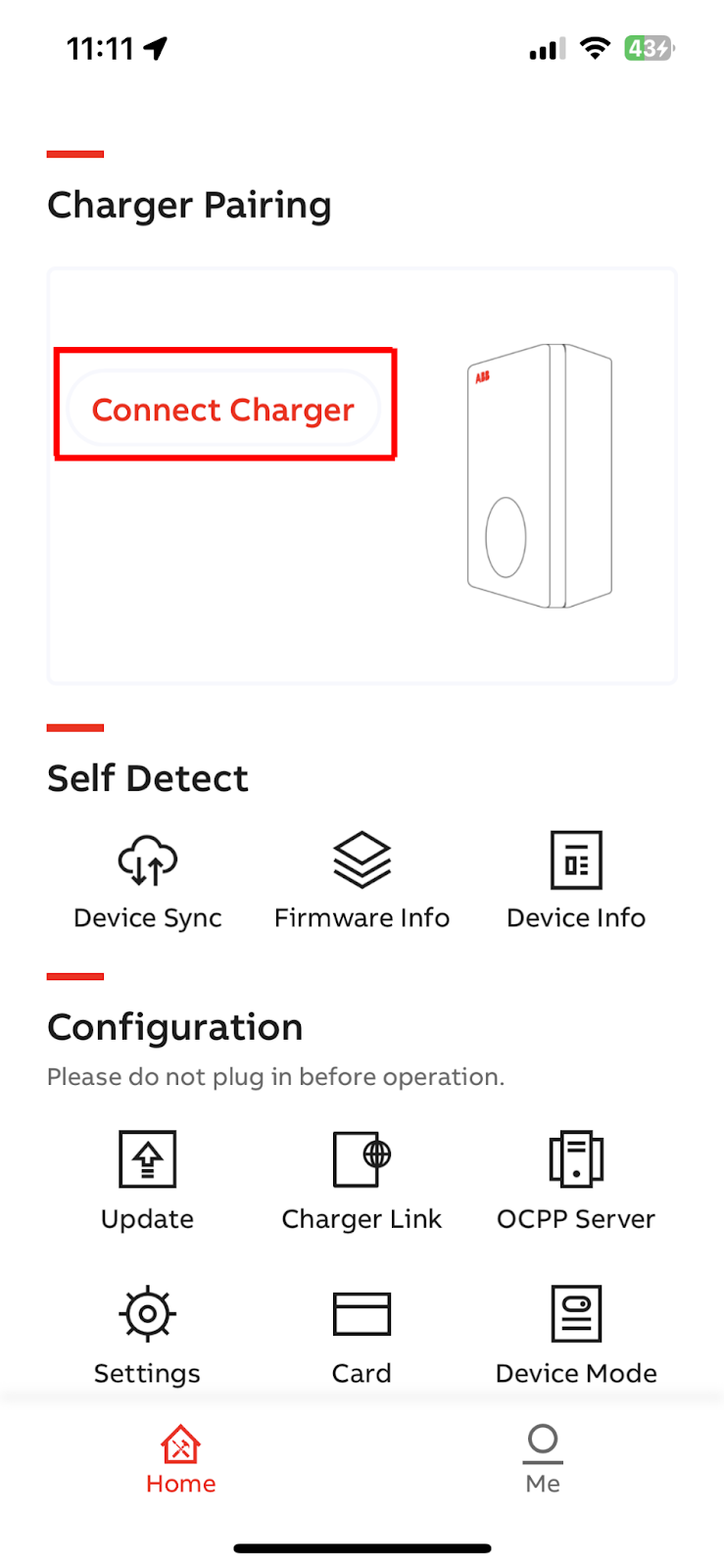

Select Connect Charger

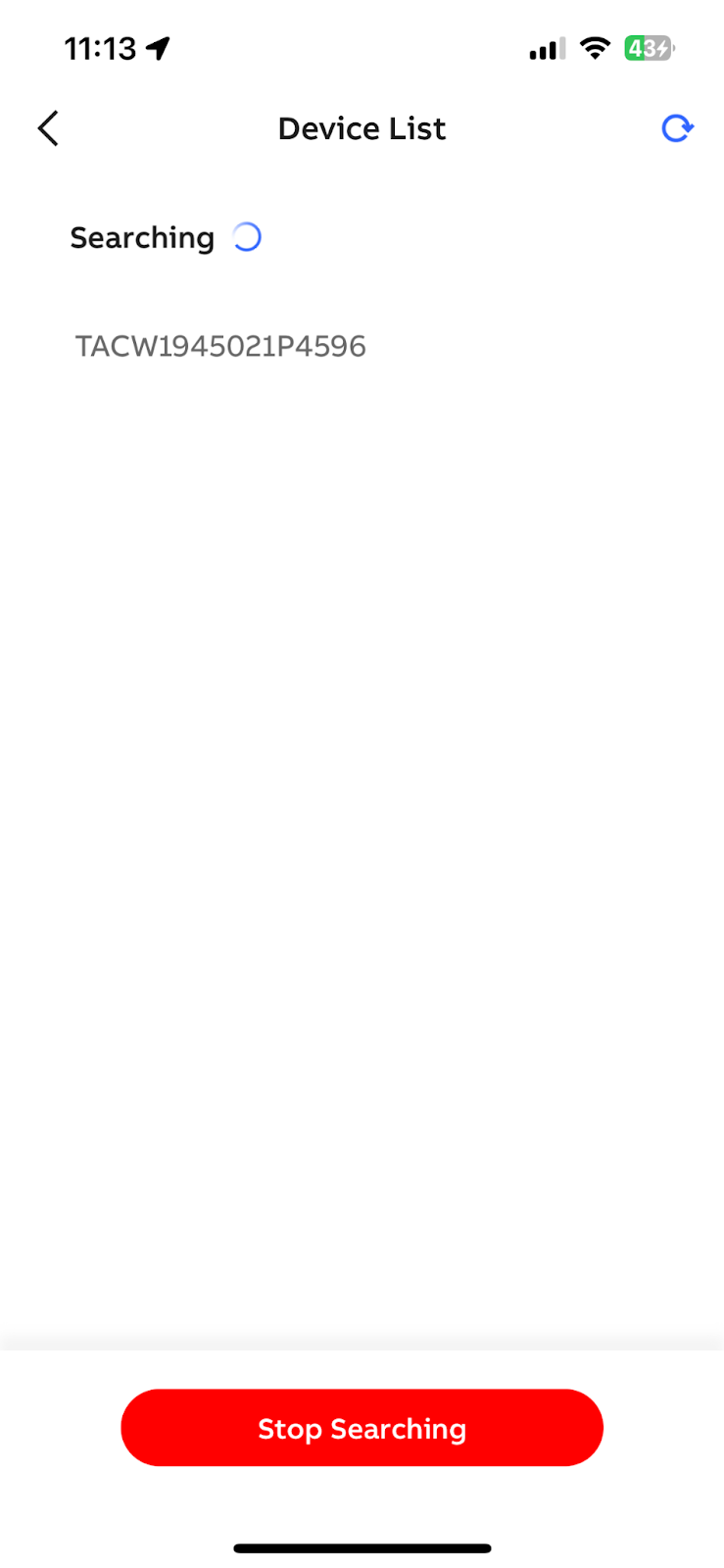

Select the device serial number from the list

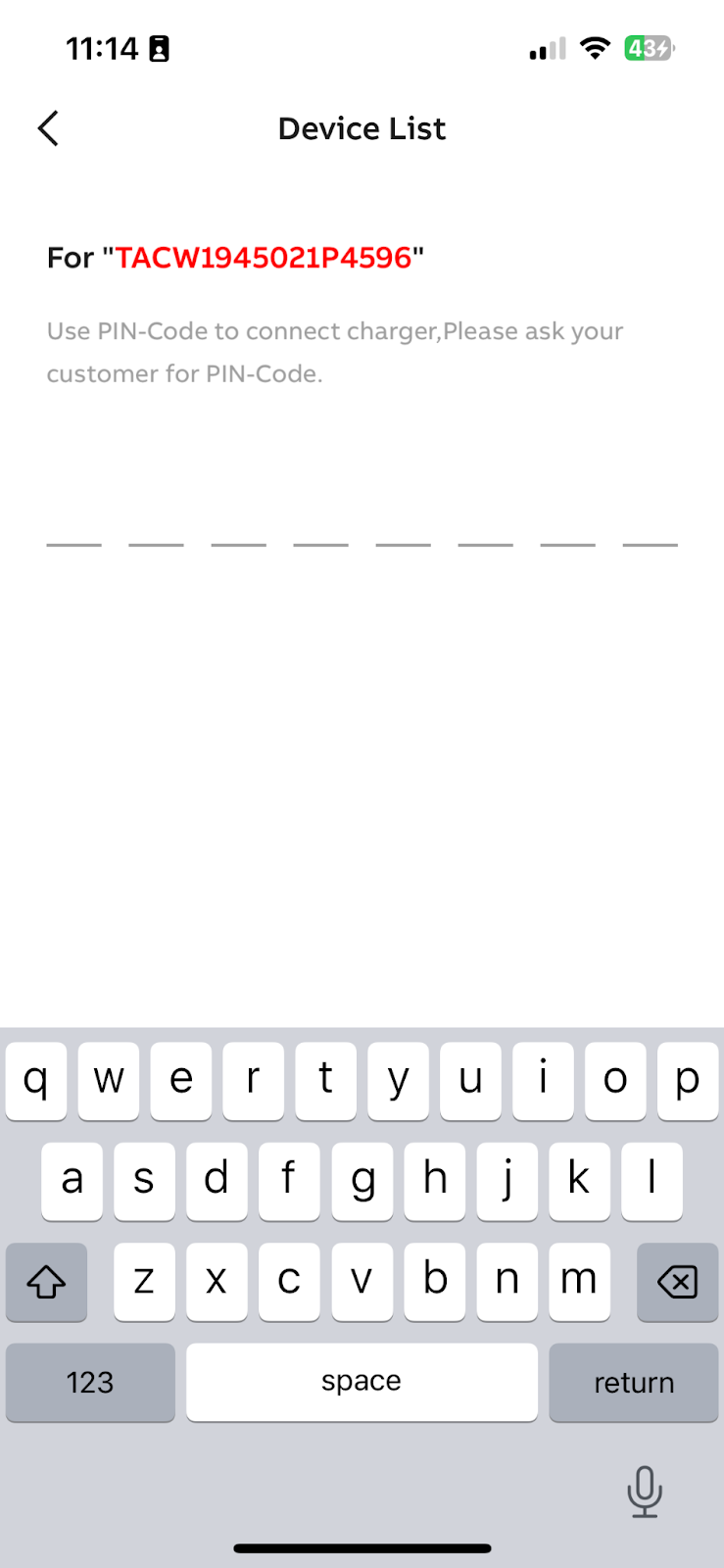

Enter the device PIN code that is included with the charger manual

2. Charger configuration

Once you are connected to the charger, you may configure the unit using the TerraConfig app

Select OCPP Server

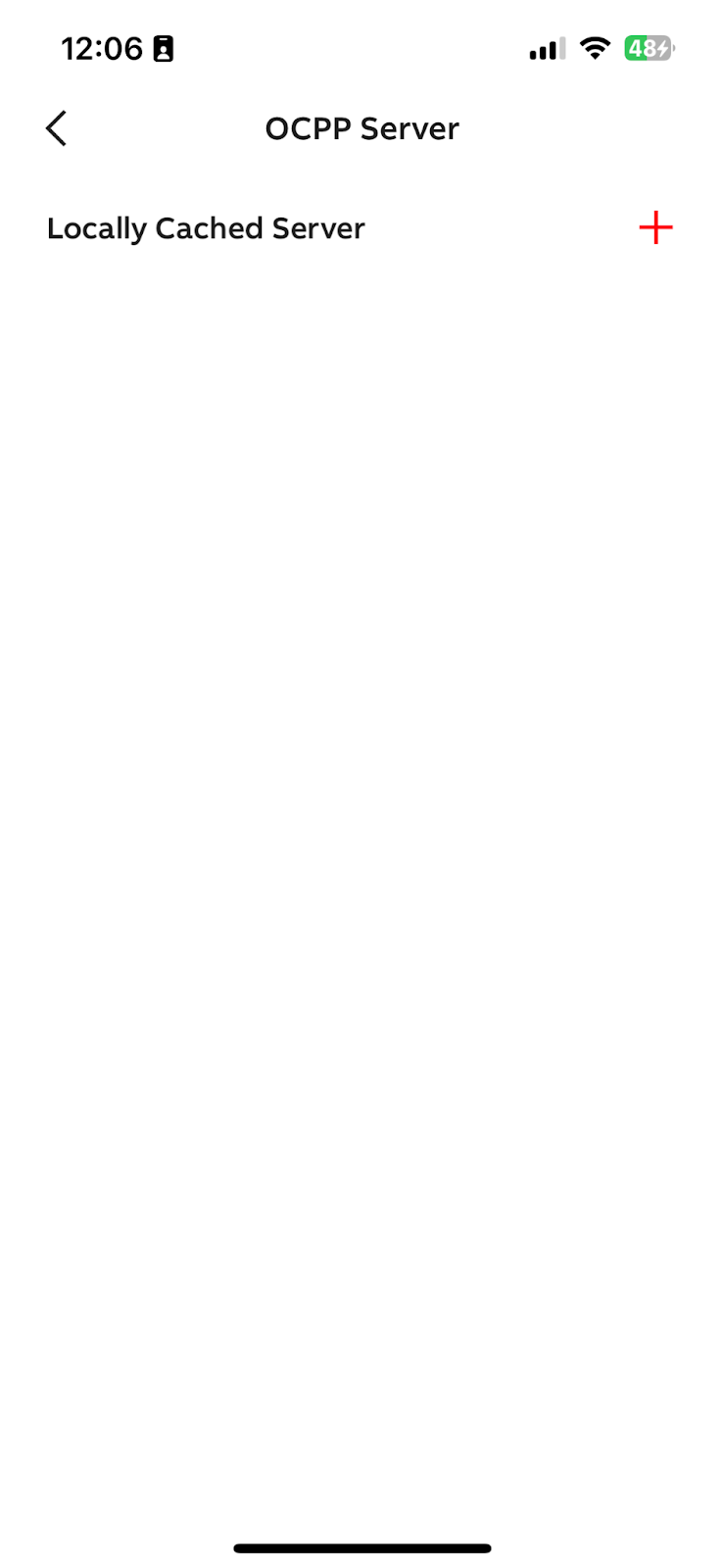

Select the + button (if http://ocpp.io:80 is already listed, skip to step 10)

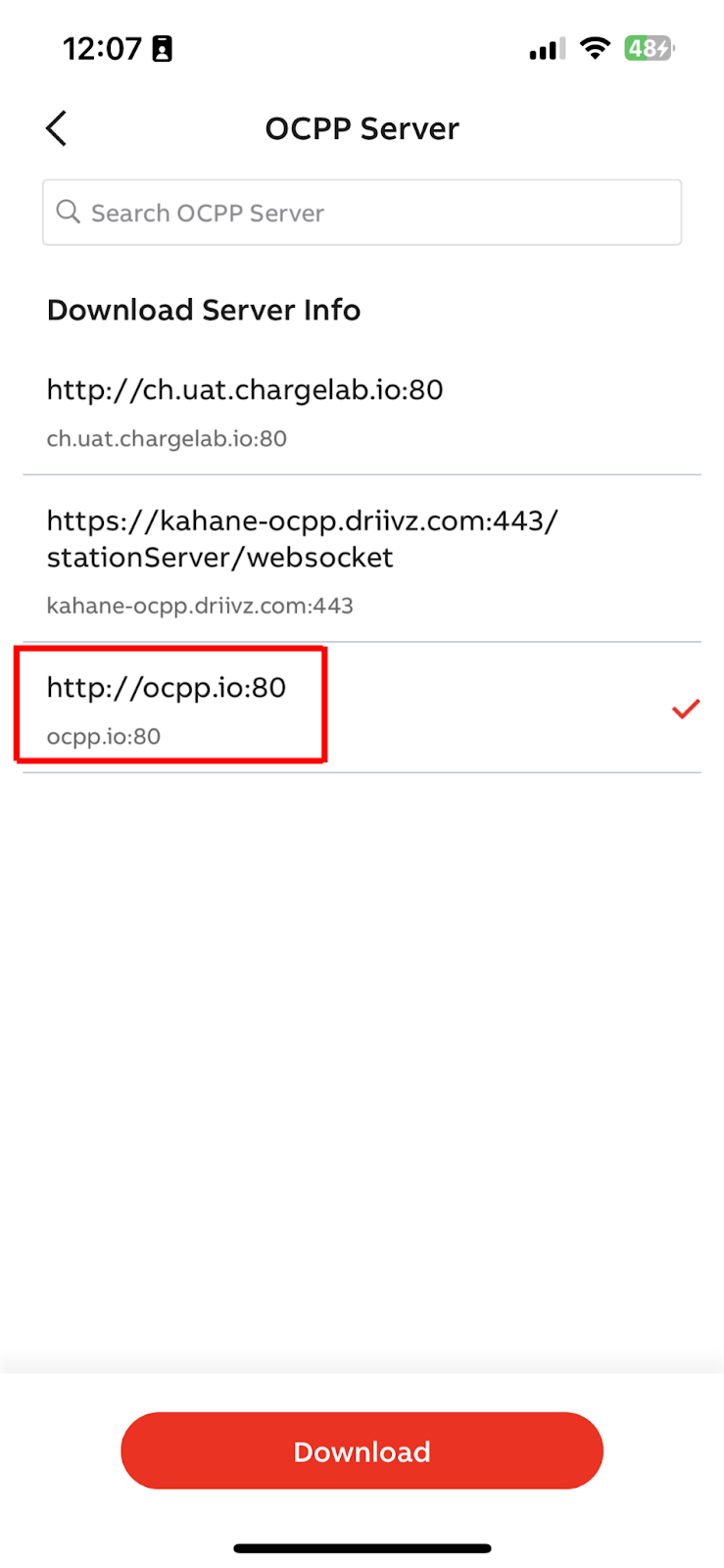

Select http://ocpp.io:80

Select Download

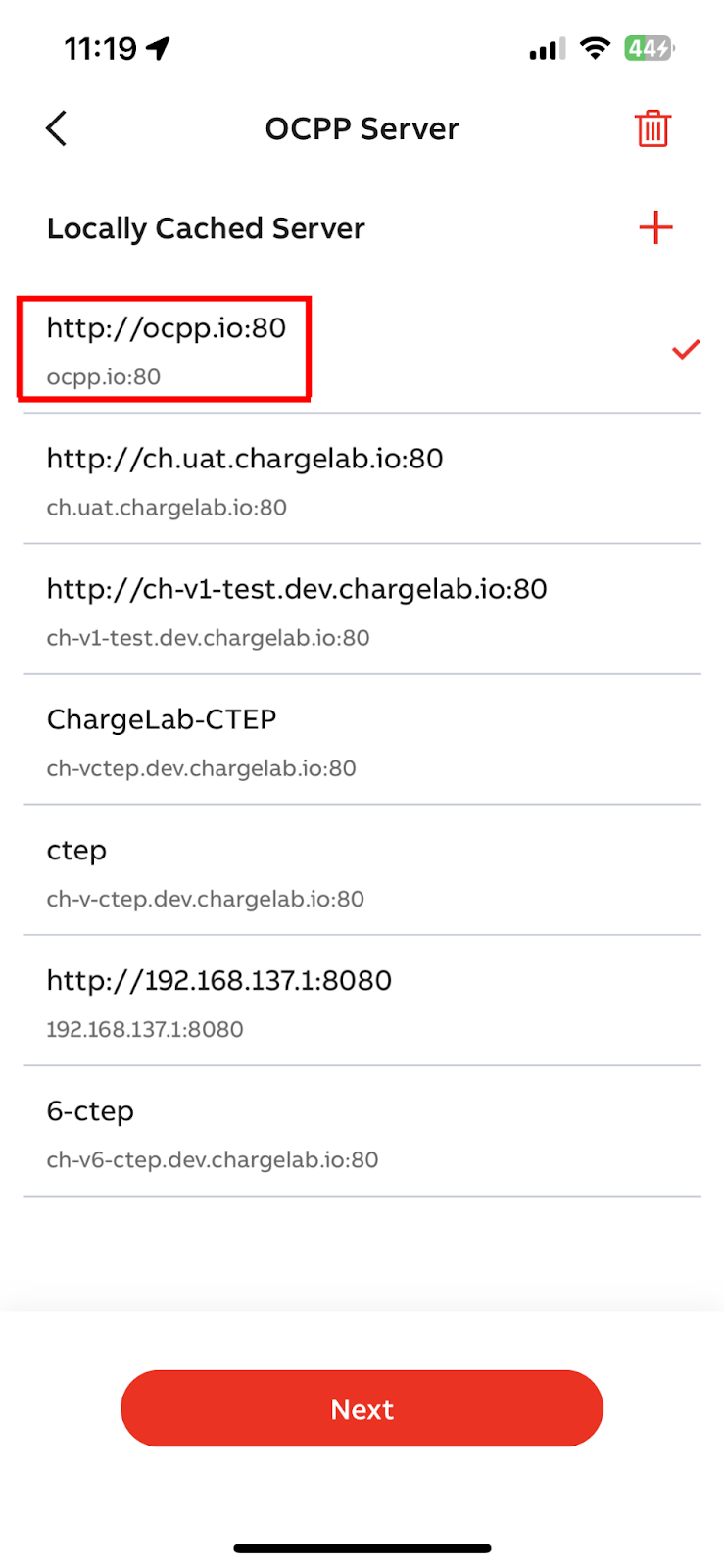

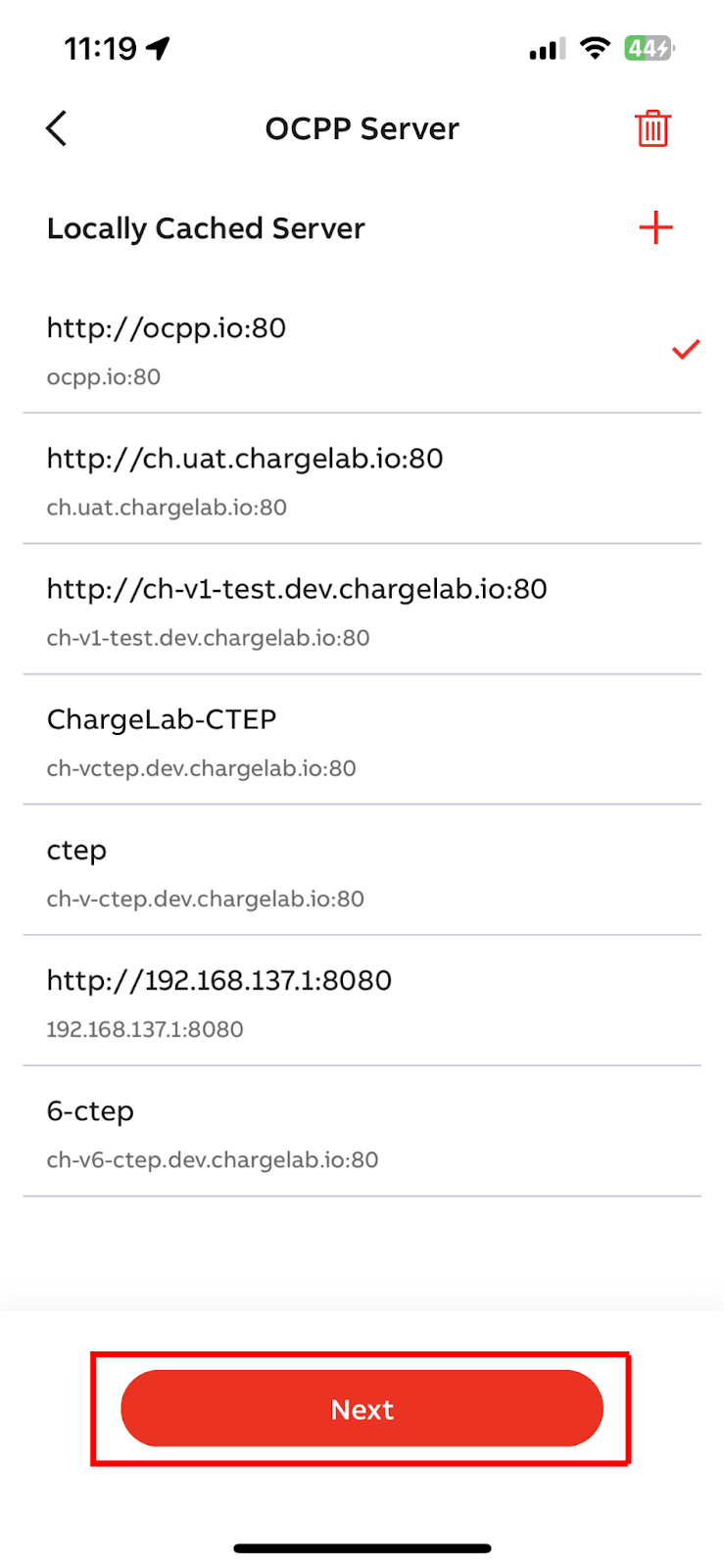

Select http://ocpp.io:80 from the list
Select Next

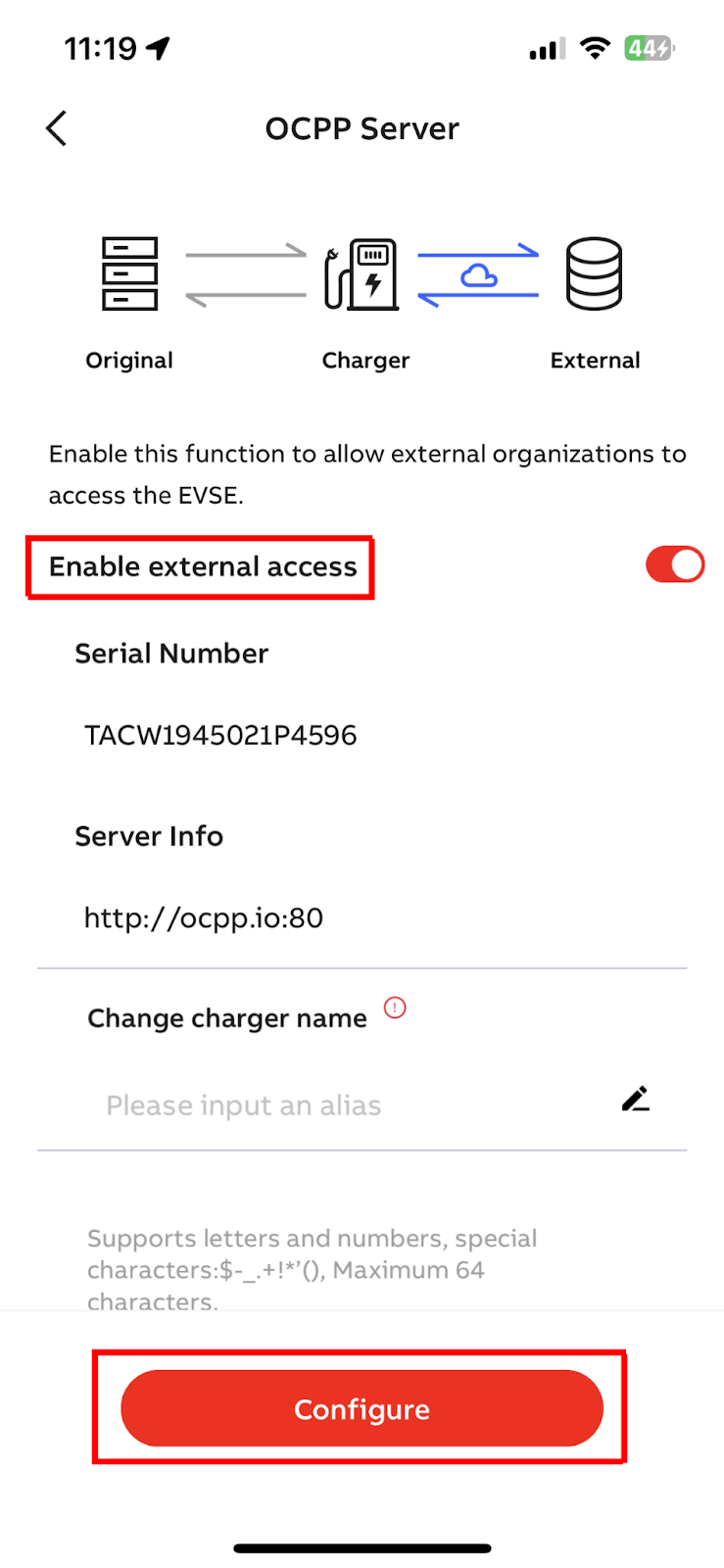

Ensure that Enable external access is enabled

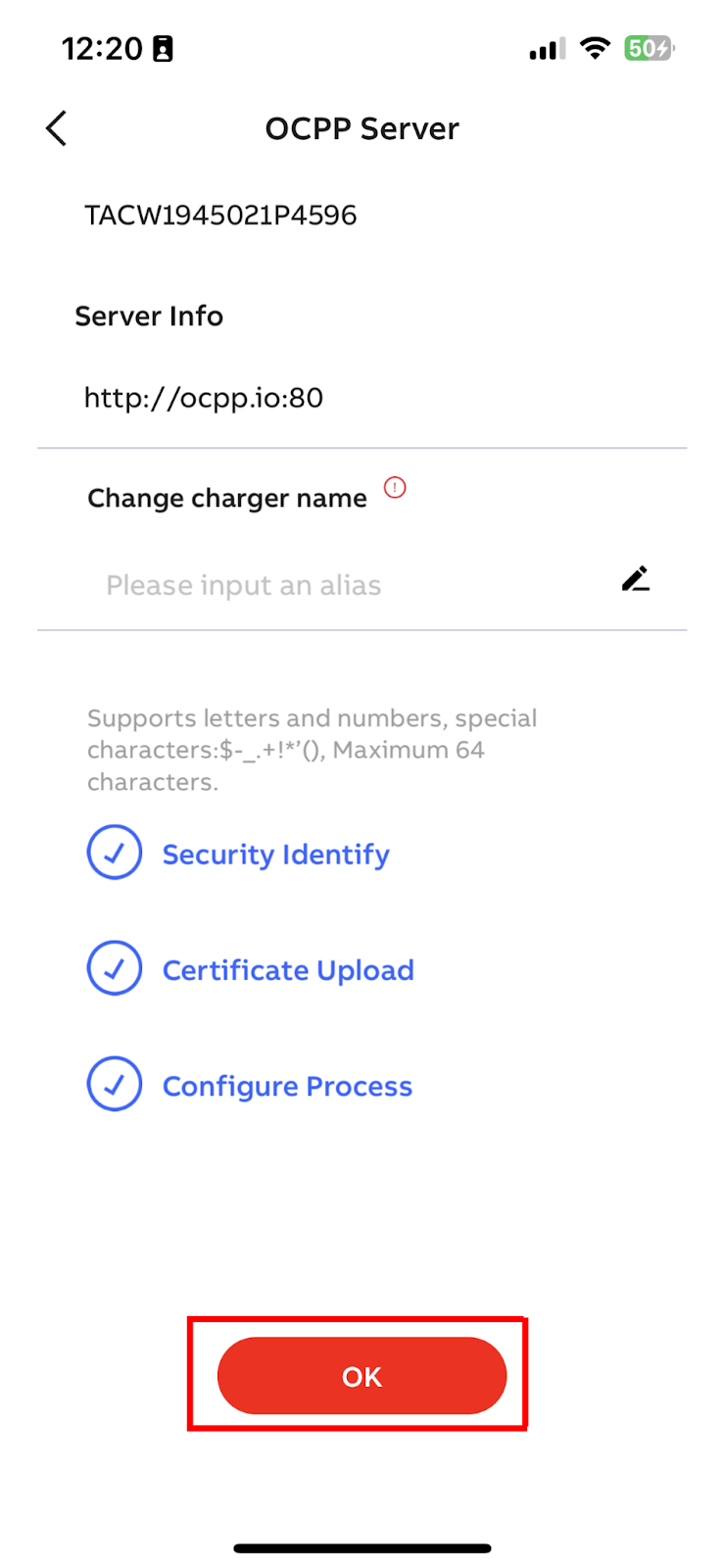

Select Configure
Select OK
Return to Charger Pairing page

3. Connectivity settings

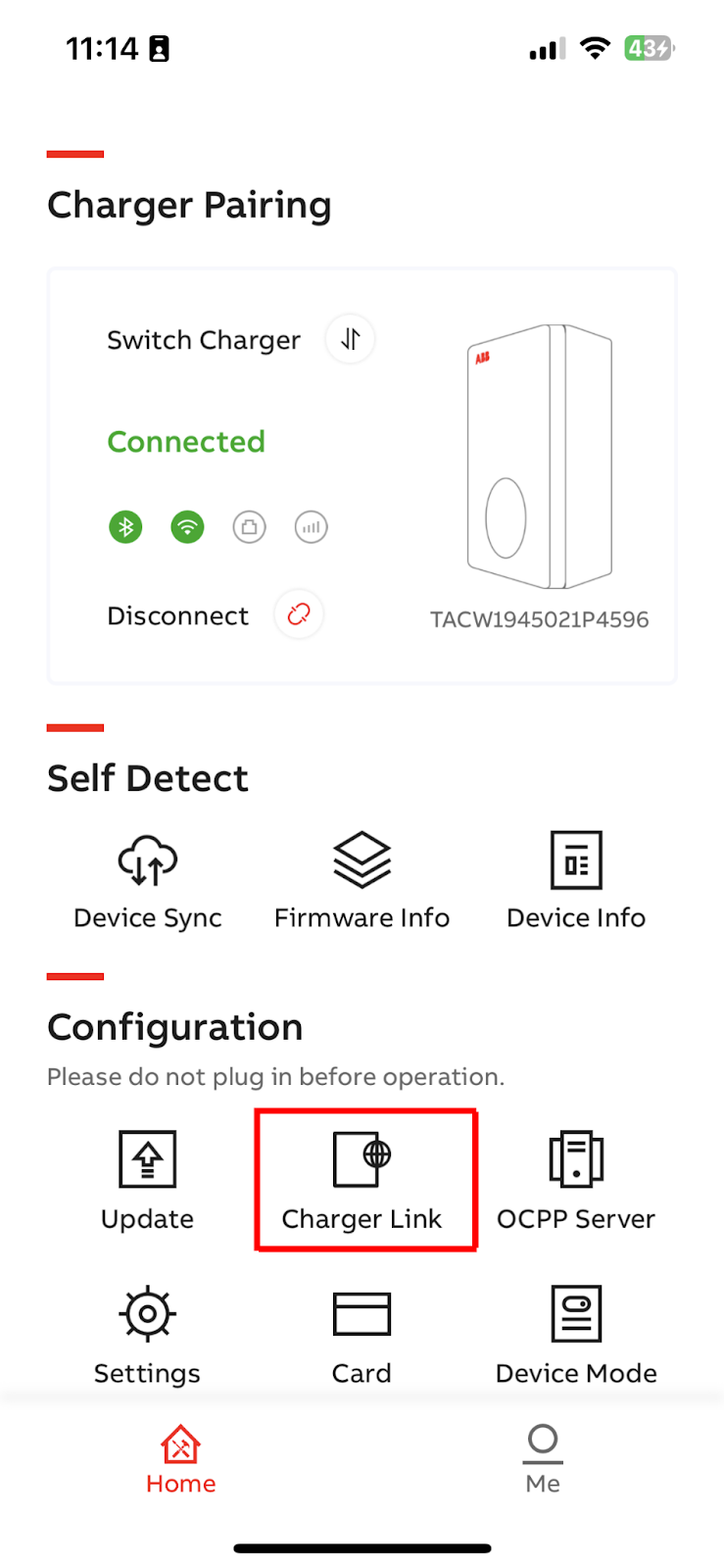

Select Charger Link

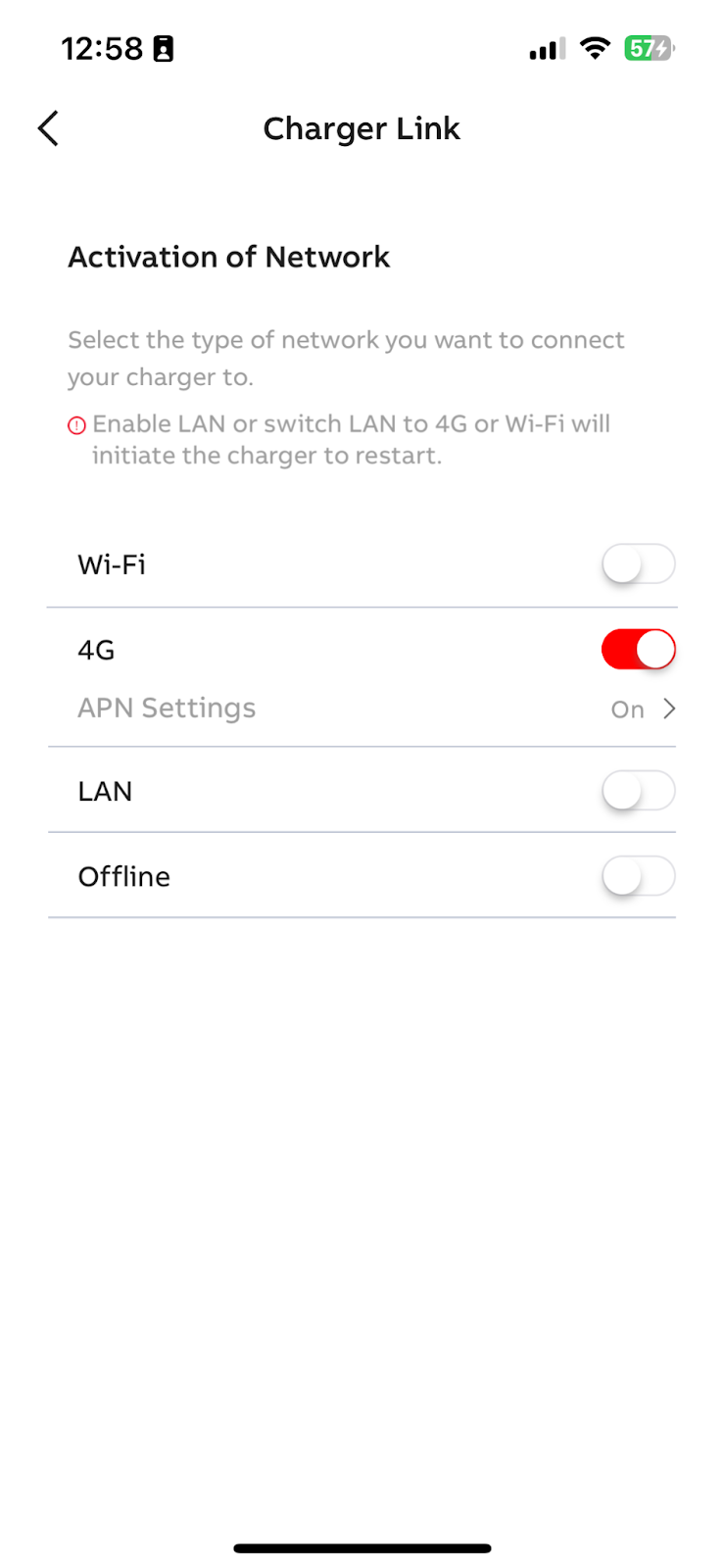

Select the appropriate network (Wi-Fi, 4G, or LAN)

3.1 Ethernet

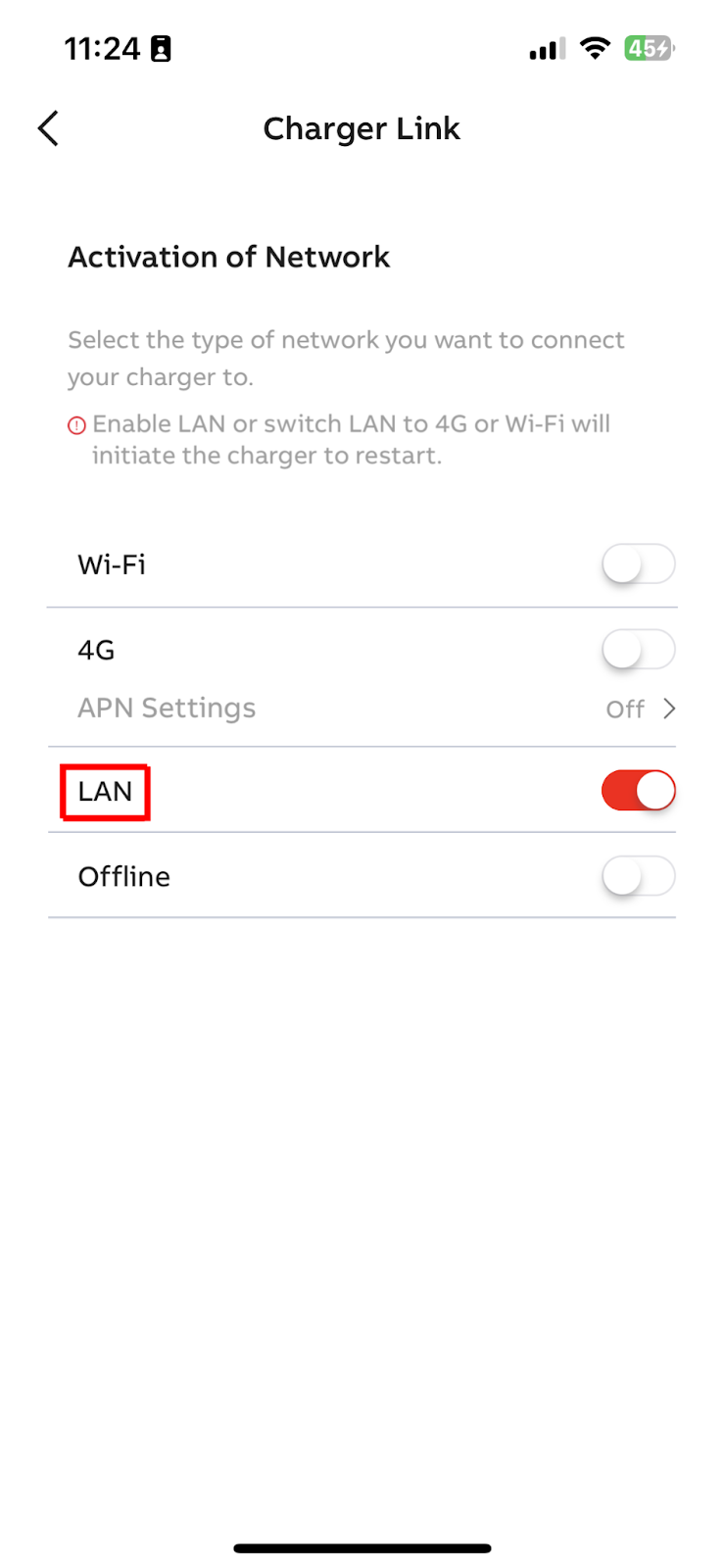

Select LAN

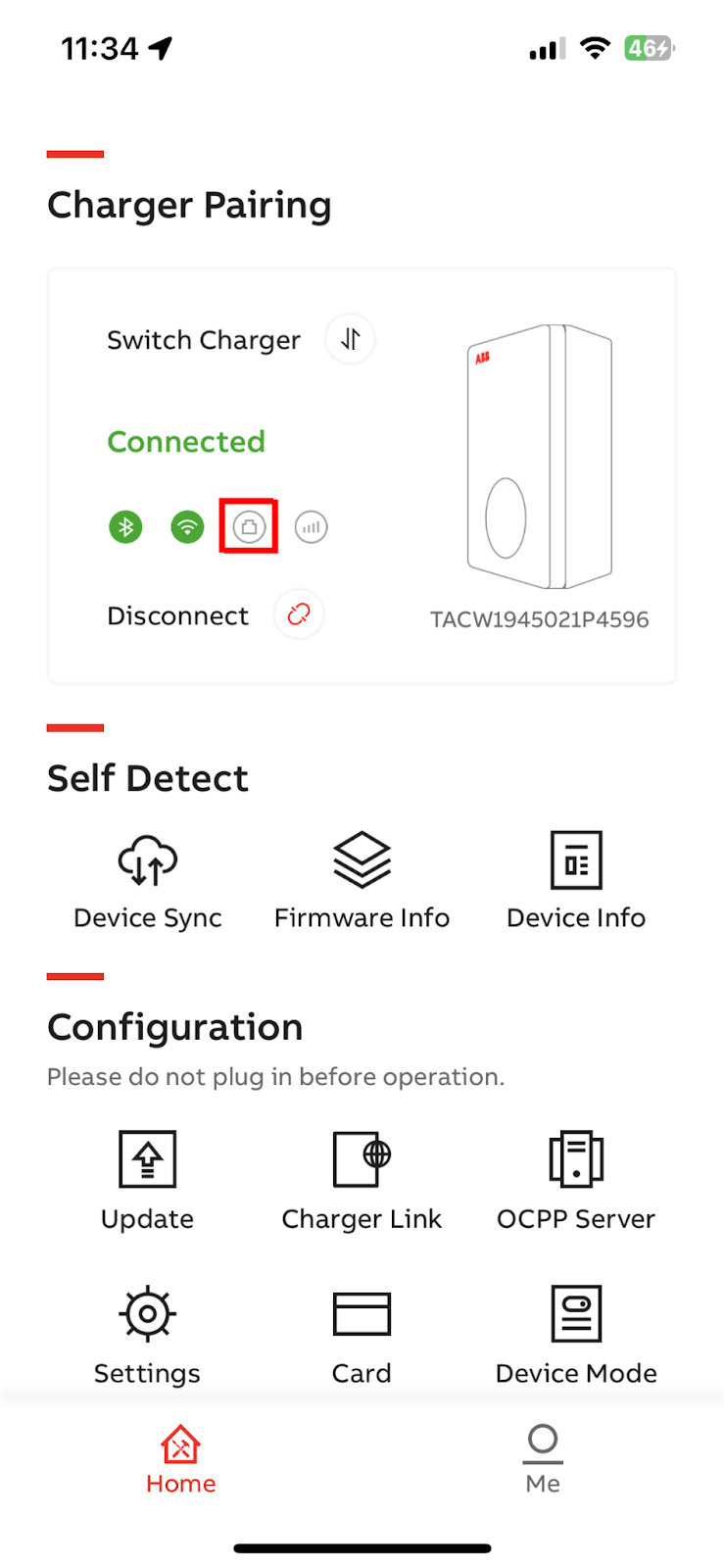

If LAN is successfully connected, the appropriate symbol will be filled in the colour Green

3.2 WiFi

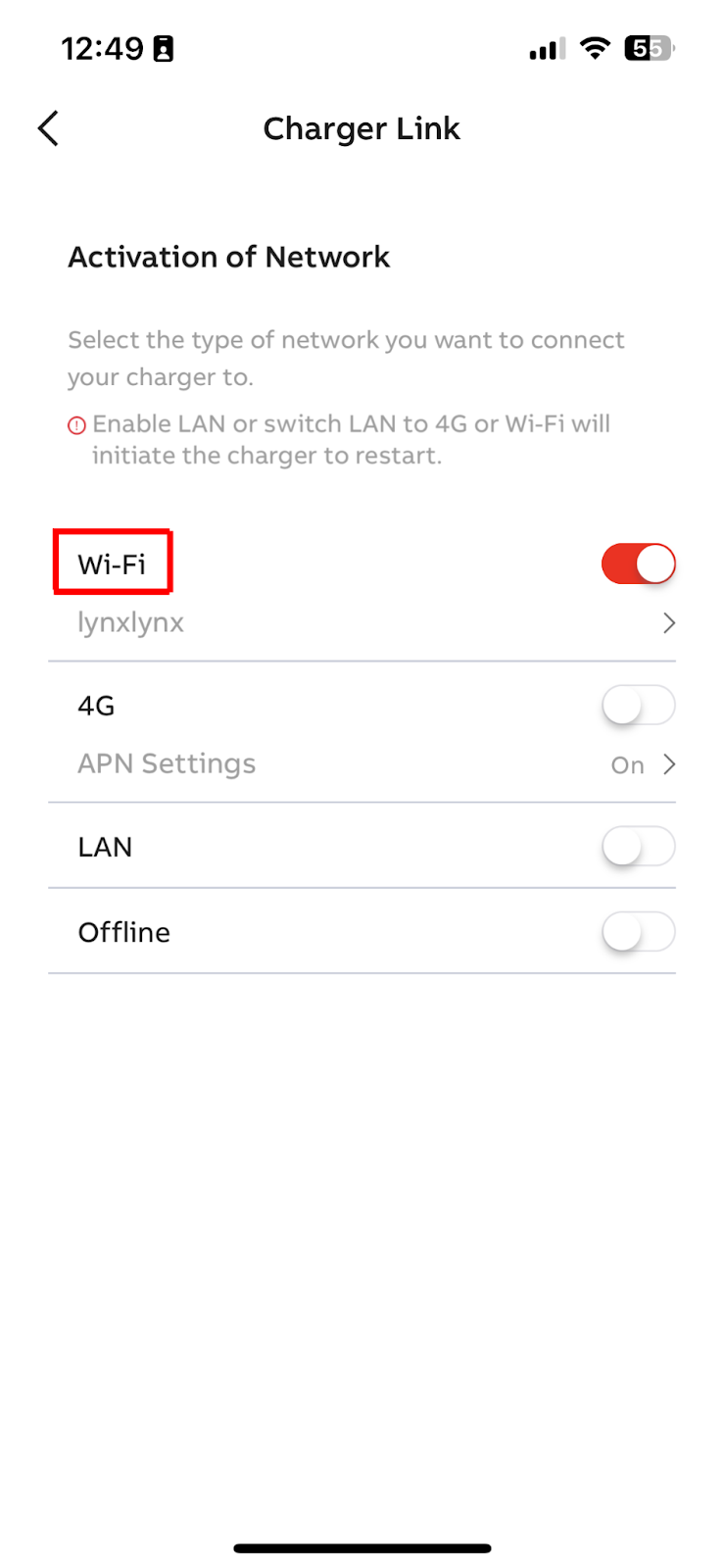

Select Wi-Fi
The charger will reboot, and you will be returned to the Charger Pairing page. Select Reconnect and then Charger Link to enter the Wi-Fi credentials

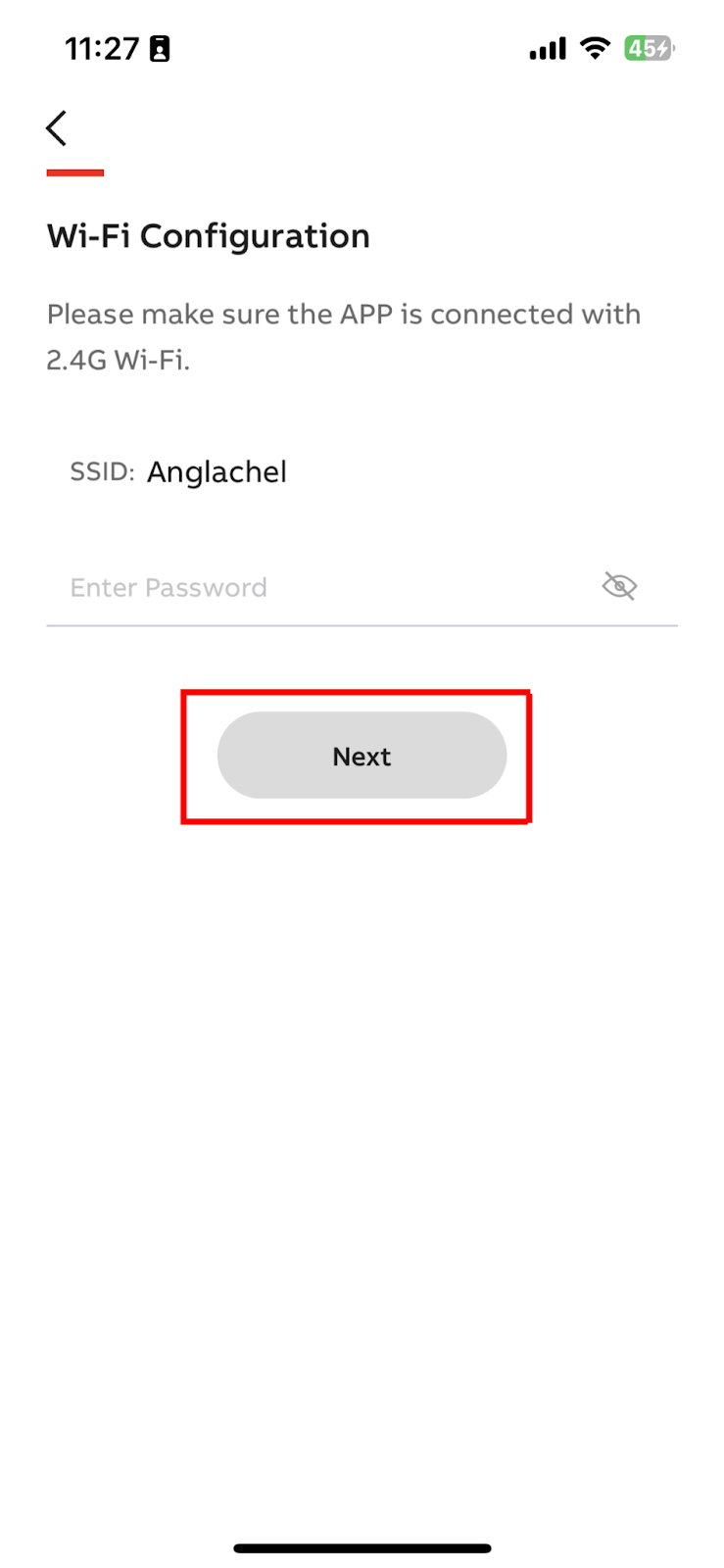

Enter the SSID (also called network name)
Note: On iOS, the SSID is copied from the Wi-Fi network that the phone is connected to. To use a different network, you will need to connect the phone to the intended Wi-Fi network
Enter the Password
Select Next

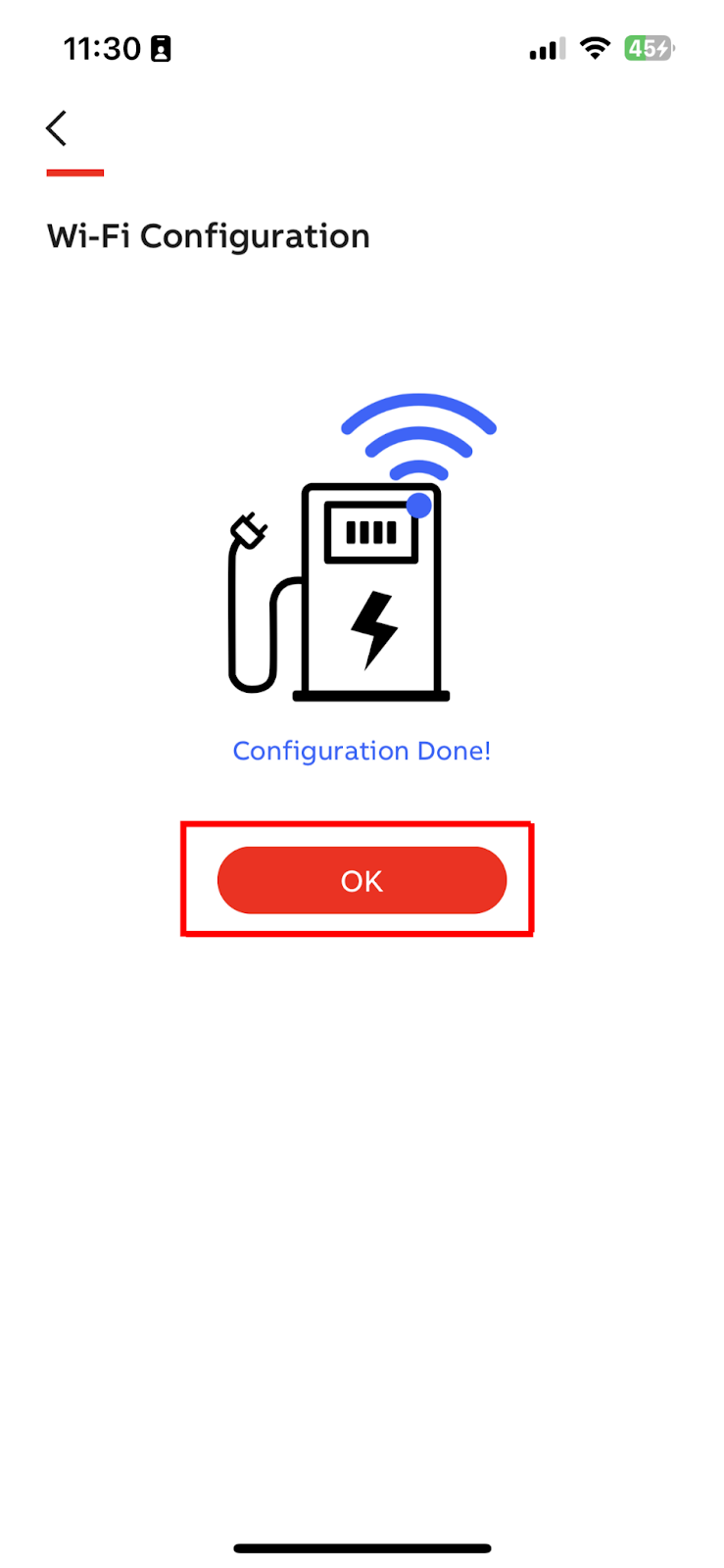

Select OK
Return to Charger Pairing page

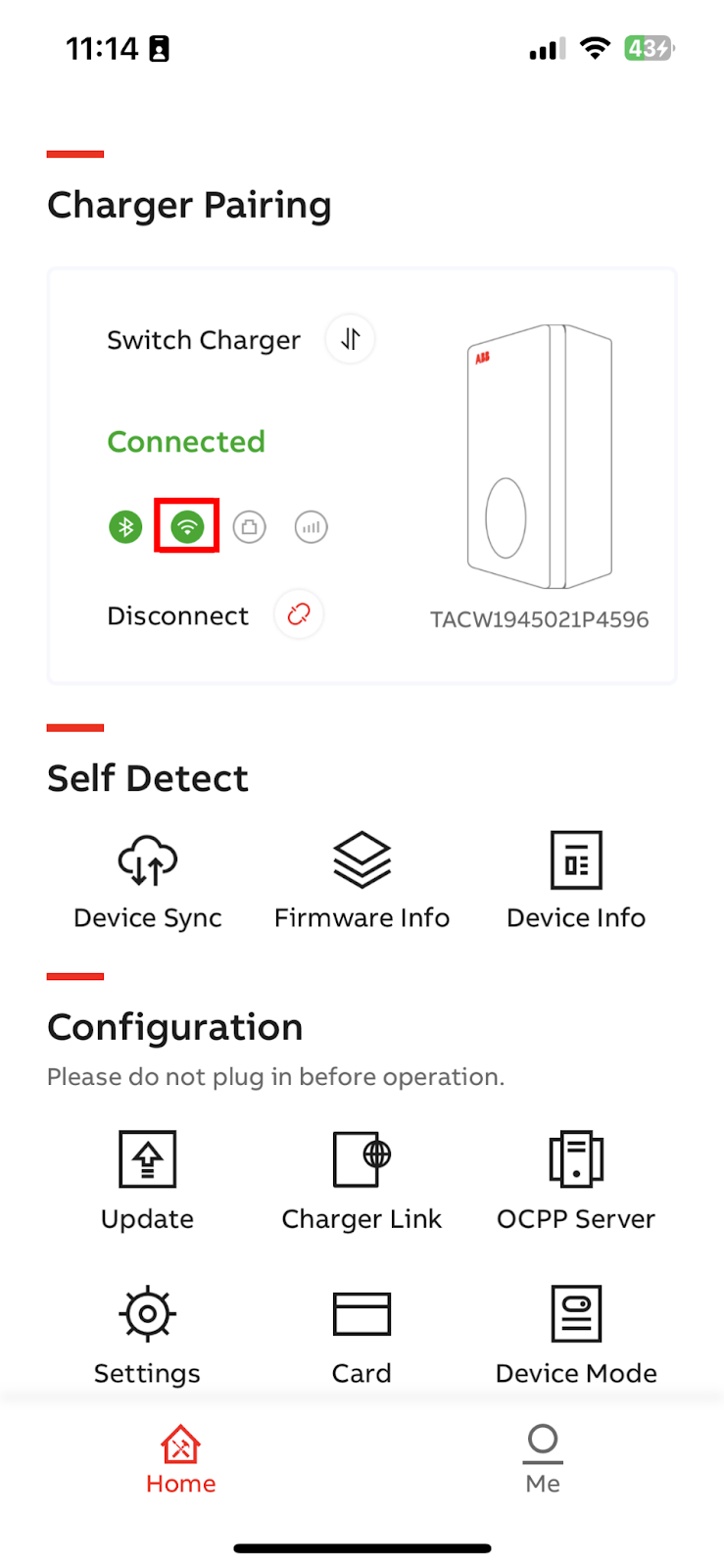

If Wi-Fi is successfully connected, the appropriate symbol will be filled in the colour Green

3.3 4G

Select 4G
The charger will reboot, and you will be returned to the Charger Pairing page. Select Reconnect and then Charger Link to enter the Wi-Fi credentials

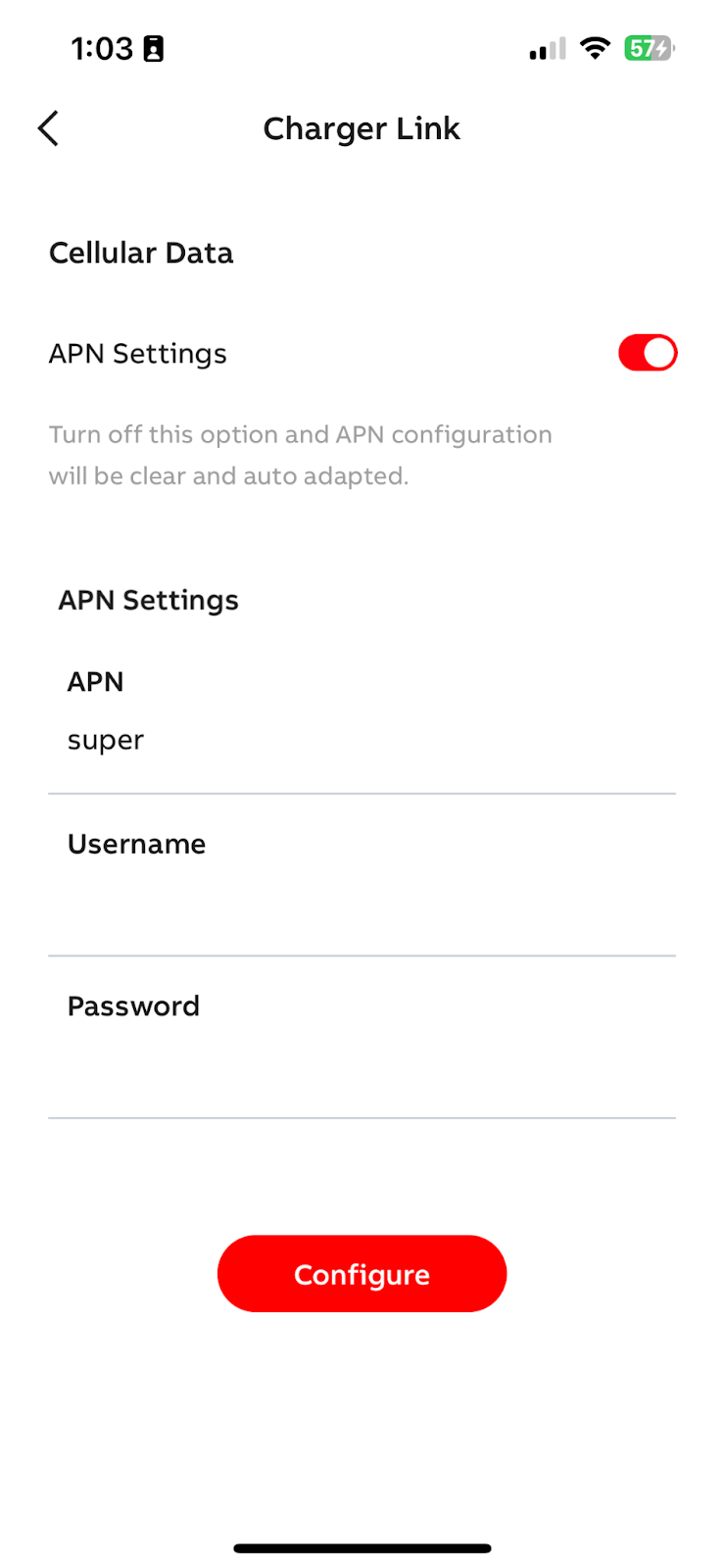

Select APN Settings

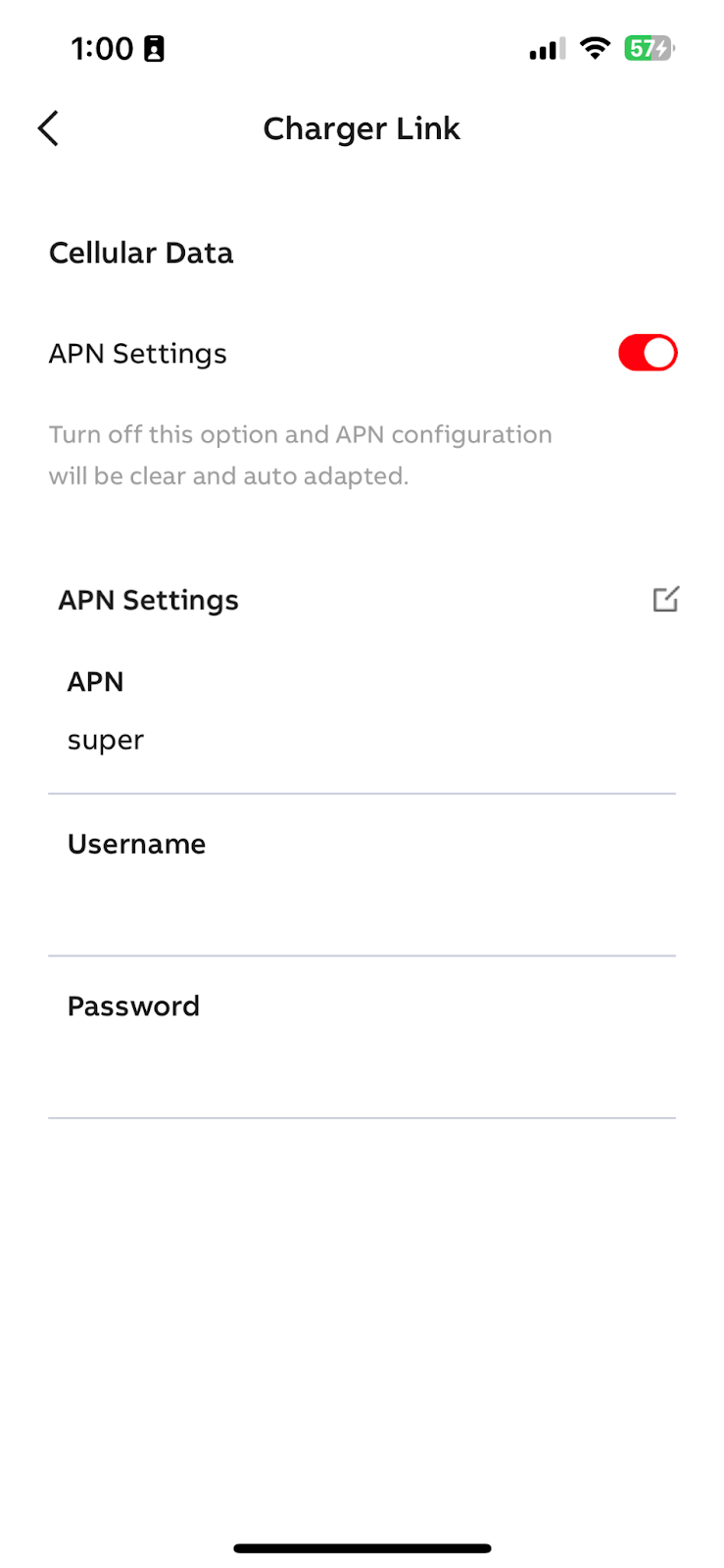

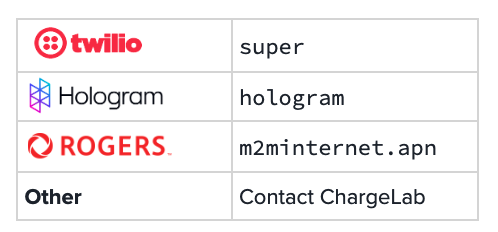

Enter the appropriate APN based on the guide below
Select Configure
Return to Charger Pairing page

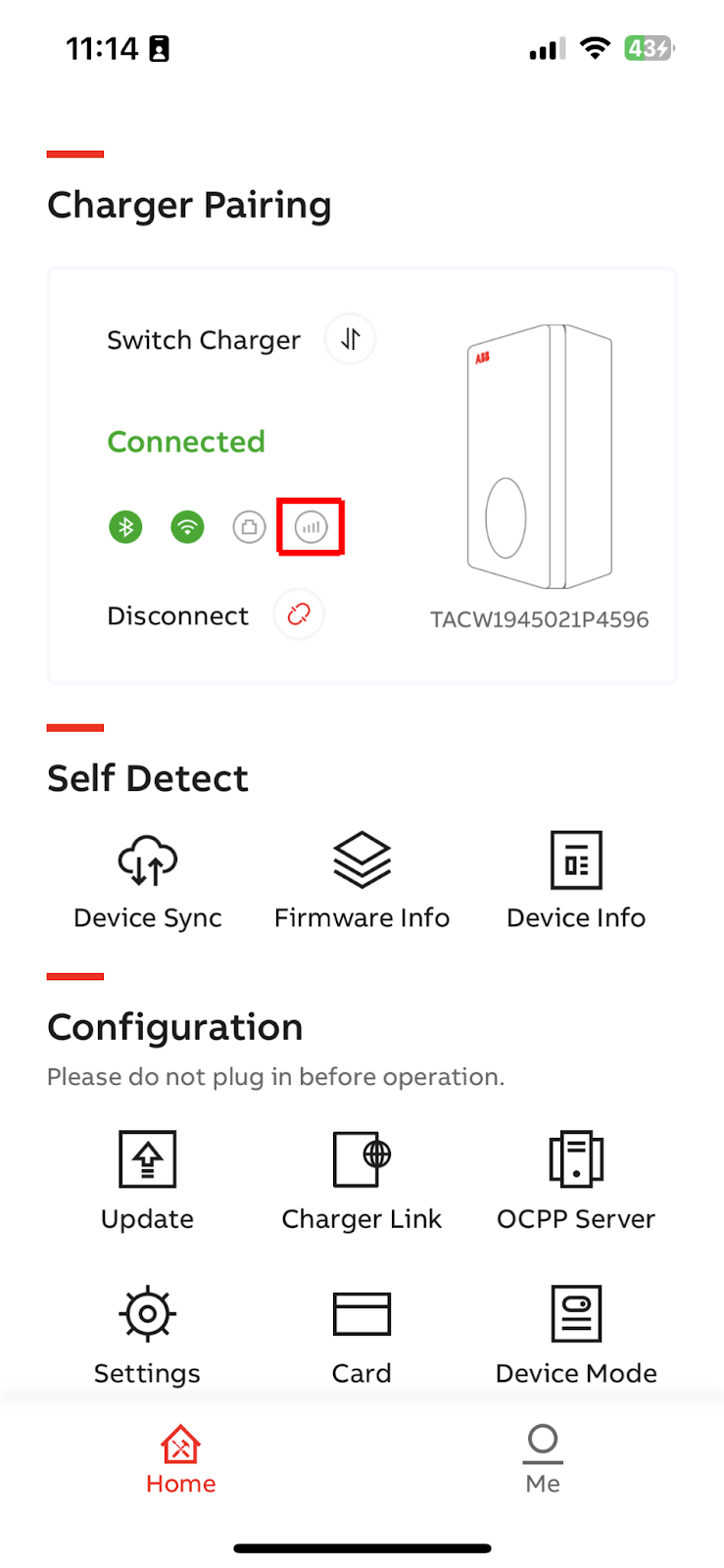

If 4G is successfully connected, the appropriate symbol will be filled in the colour Green

4. Firmware upgrade

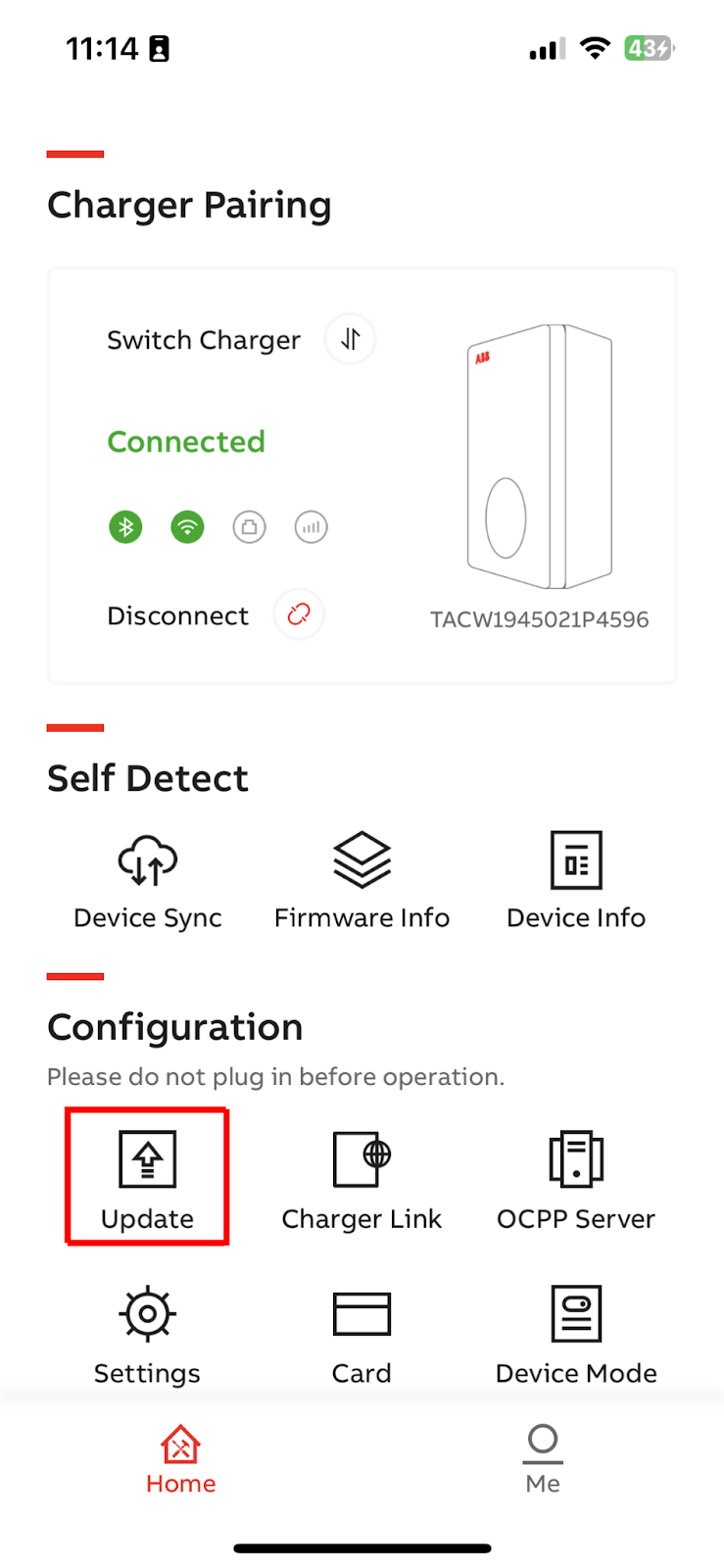

Select Update

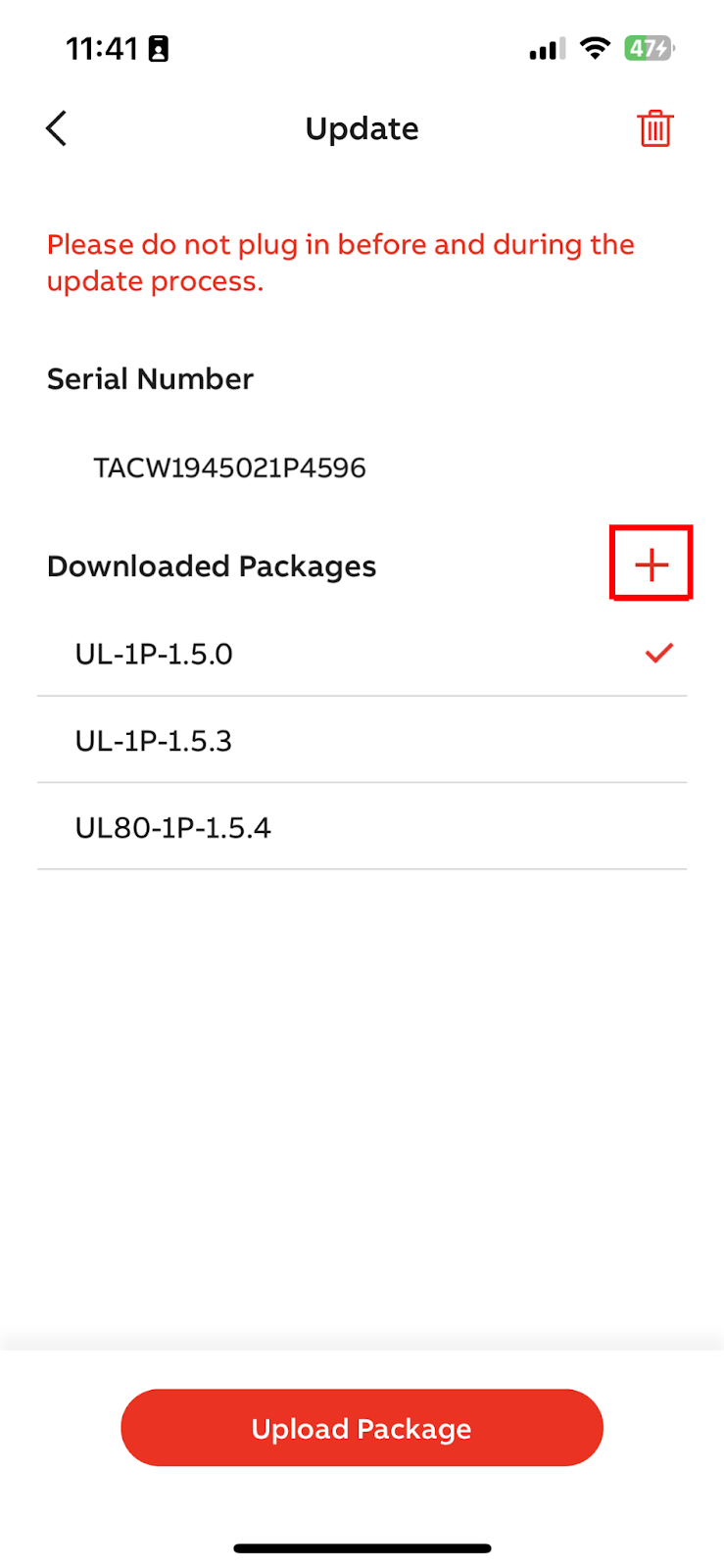

Select + button

Select the latest from the list (if there is no entry, your charger is up to date)
Select Download
Select the downloaded package from the list

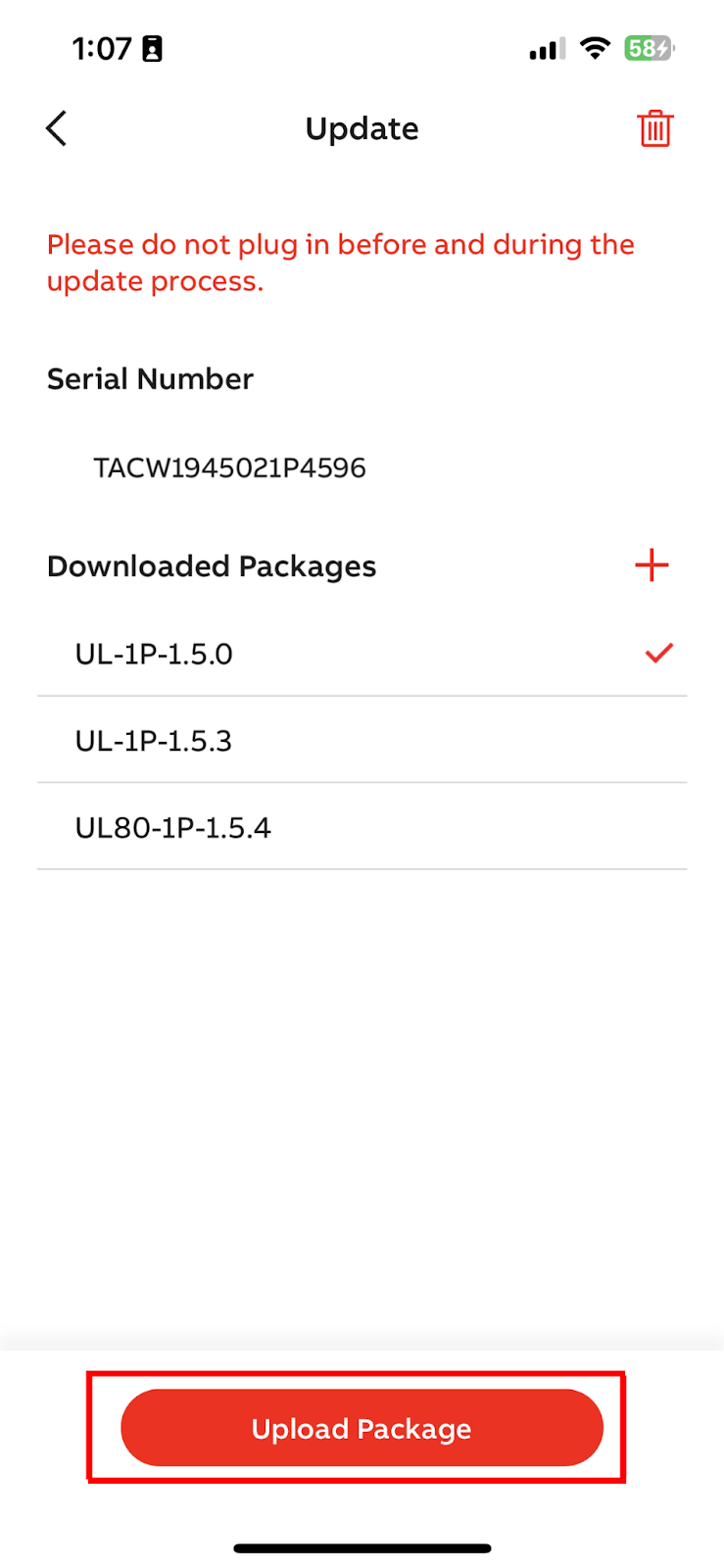

Select Upload Package
Charger will update and reboot
Return to Charger Pairing page

5. Add your charger to dashboard

Please review the article below and follow the steps to add your charger to the Site Host Dashboard. If you experience any issues or need assistance, don’t hesitate to contact our Deployments Team at deployments@chargelab.co.
