Configuration Guide for Model Number: GMEV80CME1B-WC

Model: GMEV80CME1B-WC

• Power: 19.2 kW AC Level 2 charger, 240 Vac, 80 A
• Connectivity: Wi-Fi, Ethernet

•

Wi-Fi Setup:

1. Connect to Commissioning Tool:
   • Download and install the Eaton EV Charger Commissioning Tool here on a Windows 8/10/11 PC. The Software can be found in Resources under Software, firmware, and applications.
   • Install the Eaton Commissioning Tool on a Windows computer.
   • Connect the station to your PC via an Ethernet cable.
2. Wi-Fi Configuration:
   • Open Settings -> Wi-Fi in the tool.
   • Enter the Wi-Fi credentials (SSID and password) and click Submit.

   • Confirm in the Activity Log.

3. Reboot:
   • Reboot the station from Other Functions -> Reboot EV Charge Station.
   • Disconnect the Ethernet cable and verify the connection to Wi-Fi and Eaton CNM.

Ethernet Setup:

1. Connect the Ethernet Cable:
   • Plug in the Ethernet cable. The station will automatically connect to Eaton CNM.
2. LCD Verification:

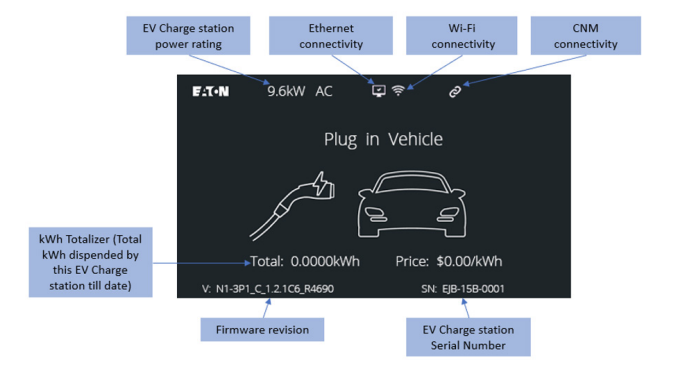

   • Confirm the Ethernet connection by checking the LCD display for Ethernet and Eaton CNM icons.
